State of Art Manufacturing Facility

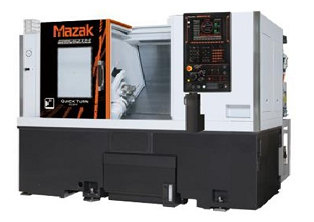

M/s.CNC Machine works have state of art new imported CNC Machine Lathe machine which serving to increase productivity.
-
Machine Modal
Quick Turn 150 SG
-
Make
Mazak Ltd-Japan
-
Type of Control System
Mazatrol Smooth C
Machine Modal
Machine Modal Quick Turn 150 SG
Type of Control System
Mazatrol Smooth C
Make
Make Mazak Ltd-Japan
List Of Description
- Compact high performance machines designed to meet production requirements.
- Due to integral spindle / motor, vibration is minimized during high-speed operation to ensure exceptional surface finishes.
- MAZATROL Smooth, the advanced CNC designed for ease of operation - standard equipment.
- Functions for unsurpassed ease of operation
- Bolt-on tool holder is standard equipment
Machine Specification - Mazak Quick Turn 150 SG 500U SMOOTH C
| Capacity | Maximum Swing Max.Machining Diameter Maximum Machine Length Bar Work capacity. | Dia 580 mm Dia 330 mm 520 mm Dia 52 mm. |
| Integral Spindle | Chuck Size Spindle Speed | 8 Inch 5000 rpm |
| Turret | Turning Tool Shank Size Boring Bar Shank Diameter | 25mm 25mm |
| Feedrate | Rapid Traverse X axis Rapid Traverse Z Axis | 33mm/Min 36 mm/Min |
| Tail Stock | Tail Stock Stroke Tail Stock Centre | 530 mm MT No:5 |
| Motors | Spindle Motor | 15 kw |
| Torque | Spindle | 233 NM |
| Accuracy | - | 0.001mm |
Measuring Instruments
Measuring tools are important for determining dimensions of any given object. M/s.CNC Machine works always use the right tool for the job. Presently CMW have following measuring Instruments for determine the job sizes as well as purpose of quality checking procedure
| SL.NO | INSTRUMENT NAME | MAKE | LEAST COUNT | MEASURING RANGE | QUANTITY |
| 1 | Dail Vernier Caliper | Mitutoyo | 0.02 mm | 0 to 300 mm | 1 nos |
| 2 | Digital Vernier Caliper | MIB | 0.01 mm | 0 to 300 mm | 1 nos |
| 3 | Digital Depth Vernier Caliper | Kency | 0.01 mm | 0 to 200 mm | 1 nos |
| 4 | Digital Depth Vernier Caliper | Mitutoyo | 0.01 mm | 0 to 300 mm | 1 nos |
| 5 | Outside Micrometer | Mitutoyo | 0.01 mm | 0 to 25 mm | 1 nos |
| 6 | Outside Micrometer | Mitutoyo | 0.01 mm | 25 to 50 mm | 1 nos |
| 7 | Outside Micrometer | Mitutoyo | 0.01 mm | 50 to 75 mm | 1 nos |
| 8 | Outside Micrometer | Mitutoyo | 0.01 mm | 75 to 100mm | 1 nos |
| 9 | Digital Micrometer Extension | Mitutoyo | 0.001mm | 0 to 150 mm | 1 nos |
| 10 | Magnetic Dail Stand | Mitutoyo | 0.01mm | Standard | 1 nos |
| 11 | Vernier Height Gauge | Kency | 0.01mm | 0 to 300 mm | 1 nos |
| 12 | Plunger Dail Indicator | Mitutoyo | 0.01mm | 10.0 mm Dail | 1 nos |
| 13 | Plunger Dail Indicator | Mitutoyo | 0.01mm | 10.0 mm Dail | 1 nos |
| 14 | Plunger Dail Indicator | Mitutoyo | 0.001 inches | 0.15 inches | 1 nos |
| 15 | Lever Dail Indicator | Mitutoyo | 0.001mm | 0.2 mm Dail | 1 nos |
| 16 | Bevel protractor | Mitutoyo | 0.01mm | Standard | 1 nos |
| 17 | Surface Table | MMT | 0.01mm | 630x630 mm | 1 nos |
| 18 | ID Bore Dial | Mitutoyo | 0.01mm | 35 to 60 mm | 1 nos |
| 19 | ID Bore Dial | Mitutoyo | 0.001 inches | 18 to 35 mm | 1 nos |
| 20 | Slip Gauge Grade 2 | Kency | 32 Pieces | 1.05 to 50 mm | 1 nos |
| 21 | Depth Gauge | Gauge Maker | 0.01 mm | 0 to 2.0 mm | 1 nos |
| 22 | Digital ID Micrometer | Mitutoyo | 0.001 mm | 50 to 300 mm | 1 nos |
